Detect and Extract table data using OpenCV

This example demonstrates how to use OpenCV for table data detection and extraction. We’ll be analyzing some example outputs generated by the following code. The Colab link for this code can be found at the end of the page.

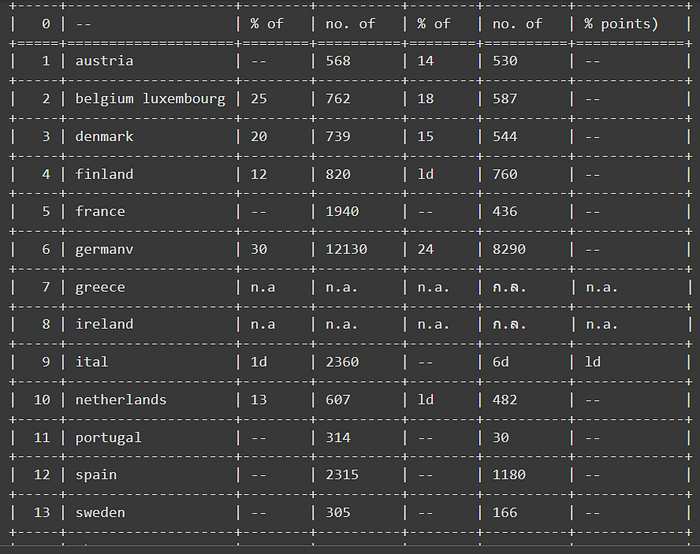

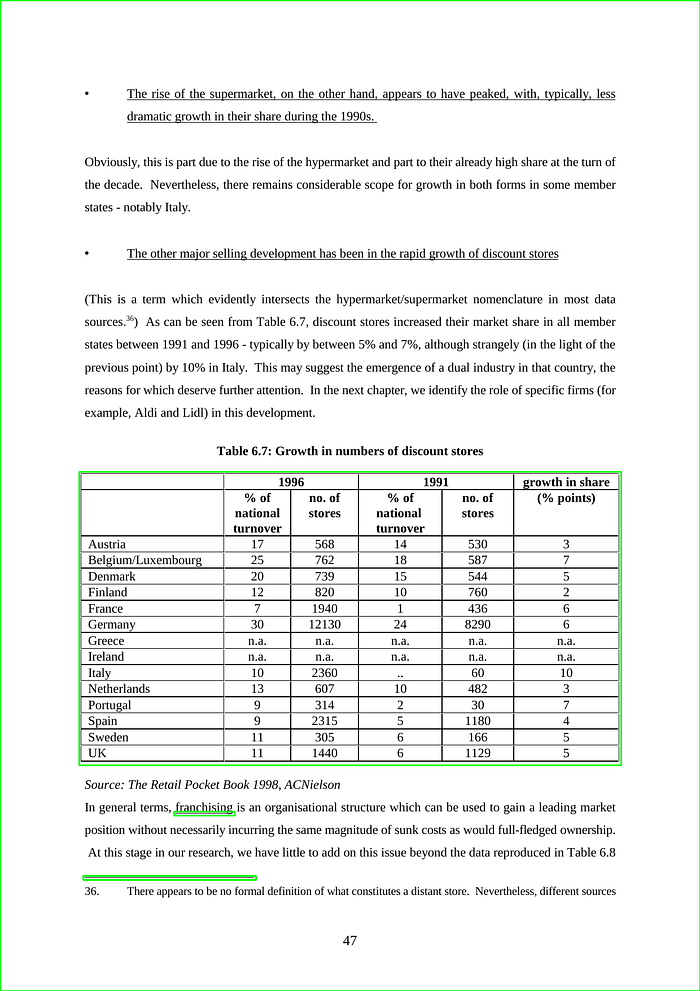

Example output :

from google.colab.patches import cv2_imshow
import pandas as pd
import cv2
import numpy as np

import easyocr
reader = easyocr.Reader(['th','en'])

def table_detection(img_path):
    img = cv2.imread(img_path)
    img_gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
    (thresh, img_bin) = cv2.threshold(img_gray, 128, 255, cv2.THRESH_BINARY | cv2.THRESH_OTSU)
    img_bin = cv2.bitwise_not(img_bin)

    kernel_length_v = (np.array(img_gray).shape[1])//120
    vertical_kernel = cv2.getStructuringElement(cv2.MORPH_RECT, (1, kernel_length_v))
    im_temp1 = cv2.erode(img_bin, vertical_kernel, iterations=3)
    vertical_lines_img = cv2.dilate(im_temp1, vertical_kernel, iterations=3)

    kernel_length_h = (np.array(img_gray).shape[1])//40
    horizontal_kernel = cv2.getStructuringElement(cv2.MORPH_RECT, (kernel_length_h, 1))
    im_temp2 = cv2.erode(img_bin, horizontal_kernel, iterations=3)
    horizontal_lines_img = cv2.dilate(im_temp2, horizontal_kernel, iterations=3)

    kernel = cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))
    table_segment = cv2.addWeighted(vertical_lines_img, 0.5, horizontal_lines_img, 0.5, 0.0)
    table_segment = cv2.erode(cv2.bitwise_not(table_segment), kernel, iterations=2)
    thresh, table_segment = cv2.threshold(table_segment, 0, 255, cv2.THRESH_OTSU)

    contours, hierarchy = cv2.findContours(table_segment, cv2.RETR_TREE, cv2.CHAIN_APPROX_SIMPLE)
    count = 0

    full_list=[]
    row=[]
    data=[]
    first_iter=0
    firsty=-1


    for c in contours:
        x, y, w, h = cv2.boundingRect(c)

        if  h > 9 and h<100:
            if first_iter==0:
              first_iter=1
              firsty=y
            if firsty!=y:
              row.reverse()
              full_list.append(row)
              row=[]
              data=[]
            print(x,y,w,h)
            cropped = img[y:y + h, x:x + w]
            cv2_imshow(cropped)
            bounds = reader.readtext(cropped)

            try:
              data.append(bounds[0][1])
              data.append(w)
              row.append(data)
              data=[]
            except:
              data.append("--")
              data.append(w)
              row.append(data)
              data=[]
            firsty=y
        cv2.rectangle(img,(x, y),(x + w, y + h),(0, 255, 0), 2)
        cv2_imshow(img)
    full_list.reverse()
    print(full_list)

    new_data=[]
    new_row=[]
    for i in full_list:
      for j in i:
        new_row.append(j[0])
      new_data.append(new_row)
      new_row=[]
    print(new_data)

    # Convert list of lists into a DataFrame
    df = pd.DataFrame(new_data)
    df = df.applymap(lambda x: '' if pd.isna(x) else x)
    from tabulate import tabulate
    table = tabulate(df, headers='firstrow', tablefmt='grid')

    # Print DataFrame
    print(table)

table_detection("/content/table.png")

1. Image Loading and Grayscale Conversion:

using cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)

2. Thresholding and Binarization:

(thresh, img_bin) = cv2.threshold(img_gray, 128, 255, cv2.THRESH_BINARY | cv2.THRESH_OTSU): Applies adaptive thresholding (Otsu’s method) to convert the grayscale image to binary (black and white). The threshold (thresh) is automatically determined to separate the foreground (table lines) from the background.

3. Vertical and Horizontal Line Detection:

1. Kernel Creation:

kernel_length_v = (np.array(img_gray).shape[1]) // 120 (vertical) and kernel_length_h = (np.array(img_gray).shape[0]) // 40 (horizontal): Calculate kernel lengths based on image width and height to ensure appropriate line detection sizes.

vertical_kernel and horizontal_kernel: Create structuring elements (kernels) for morphological operations. These are essentially small rectangles used for erosion and dilation.

2. Erosion and Dilation:

im_temp1 (vertical) and im_temp2 (horizontal): Apply erosion to thin lines and remove noise.

vertical_lines_img (vertical) and horizontal_lines_img (horizontal): Apply dilation to thicken the detected lines.

3. Combining Vertical and Horizontal Lines:

kernel = cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)): Creates a square kernel for further processing.

table_segment = cv2.addWeighted(vertical_lines_img, 0.5, horizontal_lines_img, 0.5, 0.0): Combines the detected vertical and horizontal lines using a weighted average.

4. Additional Erosion and Thresholding:

table_segment = cv2.erode(cv2.bitwise_not(table_segment), kernel, iterations=2): Erode the combined image further to remove noise and isolate table regions.

thresh, table_segment = cv2.threshold(table_segment, 0, 255, cv2.THRESH_OTSU): Apply thresholding again (adaptive-Otsu) to refine the table segment image.

5. Cell Detection and Extraction:

contours, hierarchy = cv2.findContours(table_segment, cv2.RETR_TREE, cv2.CHAIN_APPROX_SIMPLE): Finds contours (boundaries) of potential cells in the table segment image.
